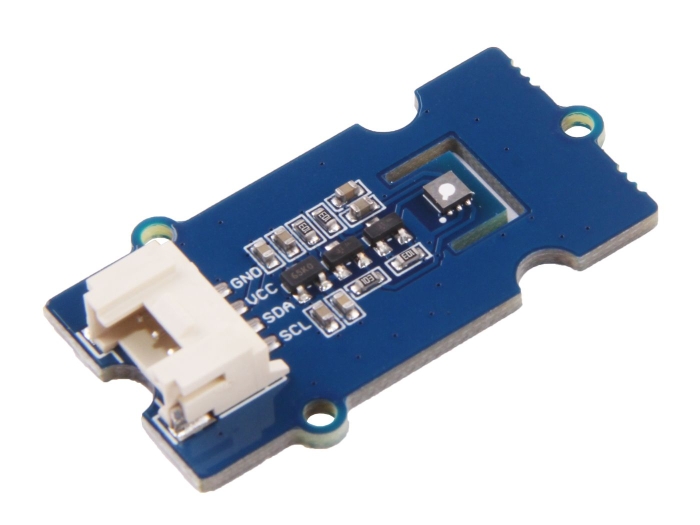

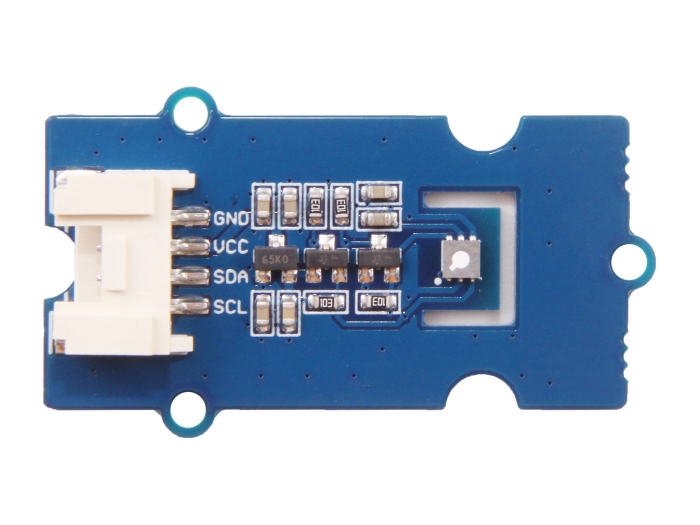

CO2 and VOC sensor Grove - SGP30


Référence : 101020512
Compatibilité
Arduino
Micro:bit
Raspberry Pi
STM32

22.5€ HT 27€ IVA INCLUIDO

Breathe easy with the SGP30 multi-pixel gas sensor. Leer más

También pueden interesarle estos productos

Descripción

Breathe easy with the SGP30 multi-pixel gas sensor.

  • Fully integrated MOX gas sensor; Sensirion's ultra fine air quality sensor.
  • Returns a total volatile organic compound (TVOC) reading and an equivalent carbon dioxide (eCO2) reading
  • Easy to use with Grove connectivity
  • Requires an expansion card: Shield Grove (#category-14);
  • Sensor compatible with any card from 3.3 to 5V;
  • Measurement range :
  • TVOC: 0ppb to 60,000ppb
  • Resolution depending on the concentration (from 1 to 30 ppb)
  • eCO2: 400ppm to 60,000ppm
  • Resolution dependent on concentration (from 1 to 30 ppm)
  • Sampling frequency: 1 Hz
  • Module dimensions: 40mm x 20mm x 16mm
  • Weight: 9g

CAUTION: This sensor is educational and cannot be used as a security object

Application examples: Air quality sensor, ...

Manufacturer: Seeed Studio (https://wiki.seeedstudio.com/Grove-VOC_and_eCO2_Gas_Sensor-SGP30/)

Reference : 101020512
